27/32
Seating Capacity
-
E474
Engine
-
120 HP
Power
-
350 Nm
Torque
-
Diesel
Fuel Type
Seating Capacity
Engine
Power
Torque
Fuel Type

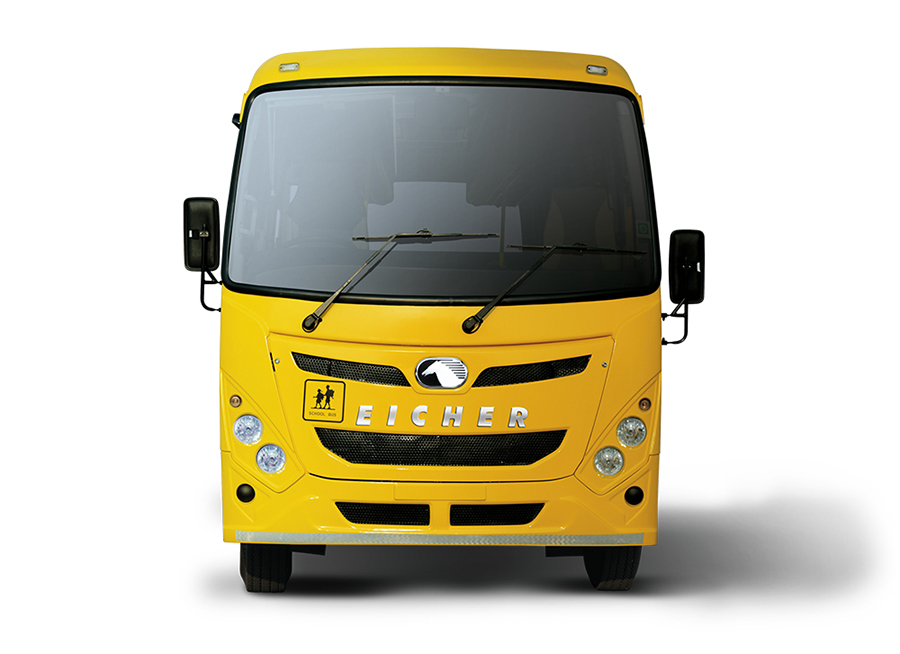

The all new Starline is designed to deliver best in class operating economics with higher safety and comfort for the young leaders. Superior fuel efficiency coupled with lower maintenance costs leads to high profitability. The modern driveline is complemented by contemporary design by way of uni-tone front Pegasus looks and refreshed interiors.
| SPECIFICATIONS | 2070 E |
|---|---|
| Seating Capacity 2X2 | 25+CD+D |
| Seating Capacity 3X2 | 30+CD+D |
| Wheelbase (mm) | 3515 |
| Overall length (mm) | 6855 |
| Overall width (mm) | 2164 |
| Overall height (mm) | 2765 |
| Front overhang (mm) | 1200 |
| Rear overhang (mm) | 2140 |
| Turning circle diameter (m) | 13.1 |
| Engine | E474 |
| Displacement (cc) | 2960 |
| Power | 120 hp (90 kW) @ 3200rpm |
| Torque | 350 Nm @ 1200 – 2500 rpm |
| Clutch diameter (mm) | 310 |
| Transmission | ET35S5 |
| Transmission type | Synchromesh (5SPeed+1Rev) |
| GVW (Tonnes) | 7.5 |
| Chassis frame | Domex® 650 |
| Chassis C frame dimensions (mm) | 200X65X5 |
| Fuel tank capacity (l) | 100 |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 7.50 X 16 -16 PR |
| Suspension - front | Semi elliptic |
| Suspension - rear | Semi elliptic |
| Steering | Power steering |
| Battery | 12V 130Ah |
| Alternator | 110A |
| Floor type | Button type Vinyl |
| DEF tank capacity (l) | 19 |
Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy
MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency
Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy
An innovative and intelligent telematics system, Eicher Live facilitates in keeping a track of fuel consumption, maintenance needs, and monitoring the movement of buses.

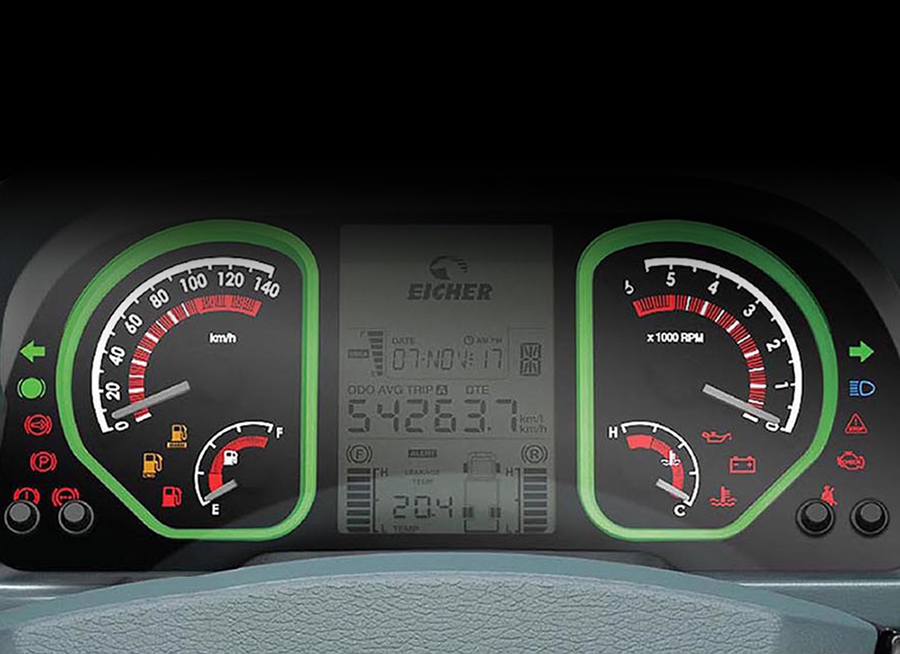

Intelligent Driver Information System keeps you aware of all the runtime information of the bus

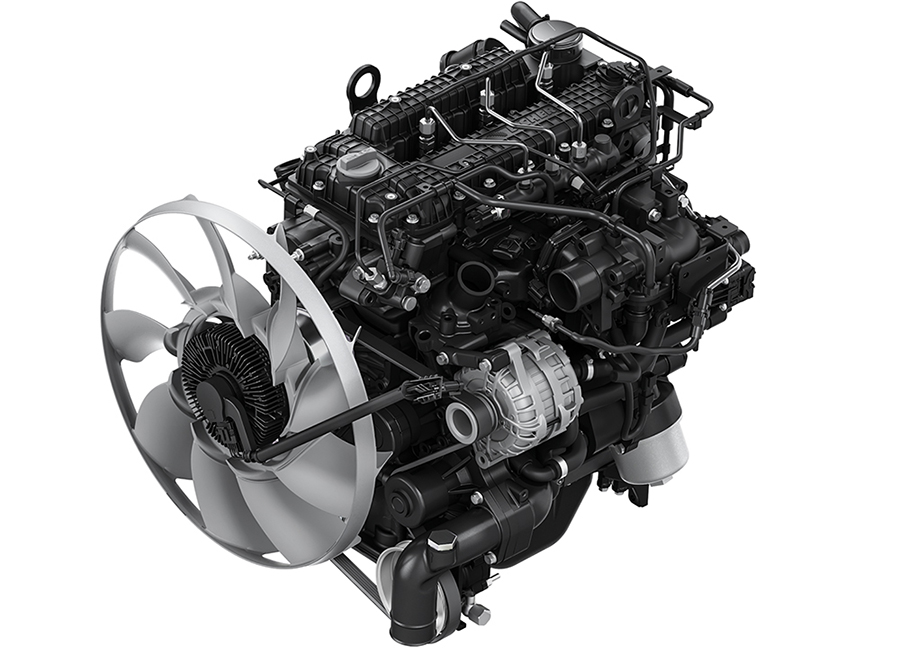

This engine offers dual benefits of high power and high fuel efficiency
