EICHER Pro 3010 L AC Chassis

  • 10.7T

    GVW

  • E494

    Engine

  • 160HP

    Power

  • 500Nm

    Torque

  • Diesel

    Fuel Type

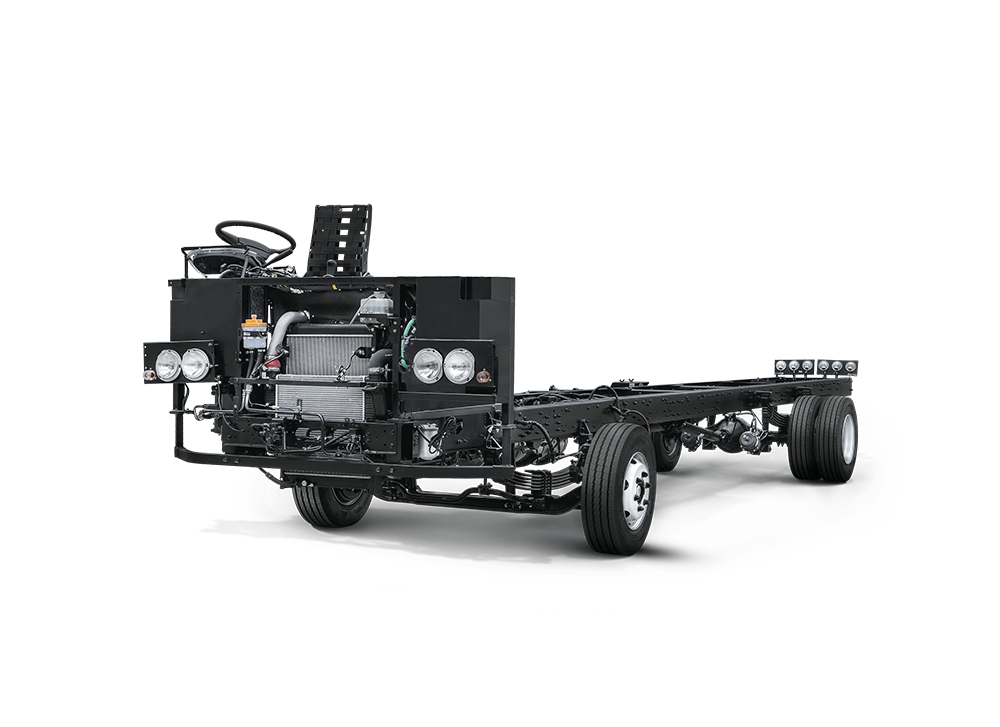

EICHER Pro 3010 L AC Chassis Overview

The all-new Eicher Pro 3010 L chassis is built strong with domex® material, silent and low maintenance parabolic suspension with Anti roll bar, radial tyres and many other advance features making it an ideal options for any application. BSVI chassis is driven by state-of-the-art E494 engine and ET40S6 transmission which provides powerful performance. Its superior fuel efficiency coupled with lower maintenance cost leads to high profitability for its stakeholders.

SPECIFICATIONS Chassis 3010
Wheelbase (mm) 5260
Overall Length (mm) 10159
Overall Width (mm) 2226
Overall Height (mm) 2470
Ground Clearance (mm)165
Front Overhang (mm) 1918
Rear Overhang (mm) 2981
Turning Circle Diameter (m) 18.5
Engine Make E494
Displacement (cc) 3770
Power 160hp (120kW)@ 2600rpm
Torque 500 Nm @ 1200-1800rpm
Clutch (mm) 330
Transmission Make ET40S6
Transmission Type Synchromesh 6SPeed+1Rev
GVW (Tonnes) 10.7
Chassis Type Ladder - Joggle trype
Chassis dimension (mm) 210 X 76 X 6
Fuel Tank Capacity (l) 160
Brakes dual circuit 'S' cam full air brakes
Tyres 235/75 R17.5 - 14PR
Suspension Front Parabolic With ARB
Suspension Rear Parabolic
Steering Power steering
Battery 24V(2X12V) 130AH
Alternator 2X120A
DEF Tank Capacity (l)27

Dynamic Fuel Coaching

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy

M-Booster+

MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Cruise Control

Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy

IDIS 2.0

Intelligent Driver Information System 2.0 keeps the driver informed of all the key parameters through an easy to read display and tell-tales.

BSVI E 494 Engine

The upgraded EUTECH6 E494 Engine comes with higher power of 160 hp and uncompromised fuel efficiency that is expected for the engine.
