EICHER Skyline Pro 3009 H

  • 37/33/26

    Seating Capacity

  • E494

    Engine

  • 160HP

    Power

  • 500 Nm

    Torque

  • Diesel

    Fuel Type

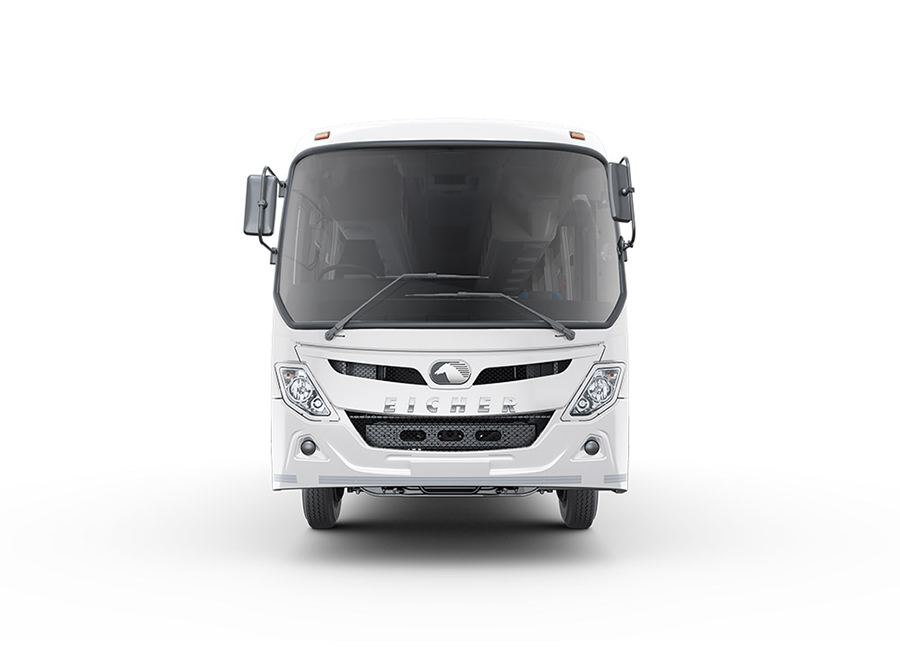

EICHER Skyline Pro 3009 H

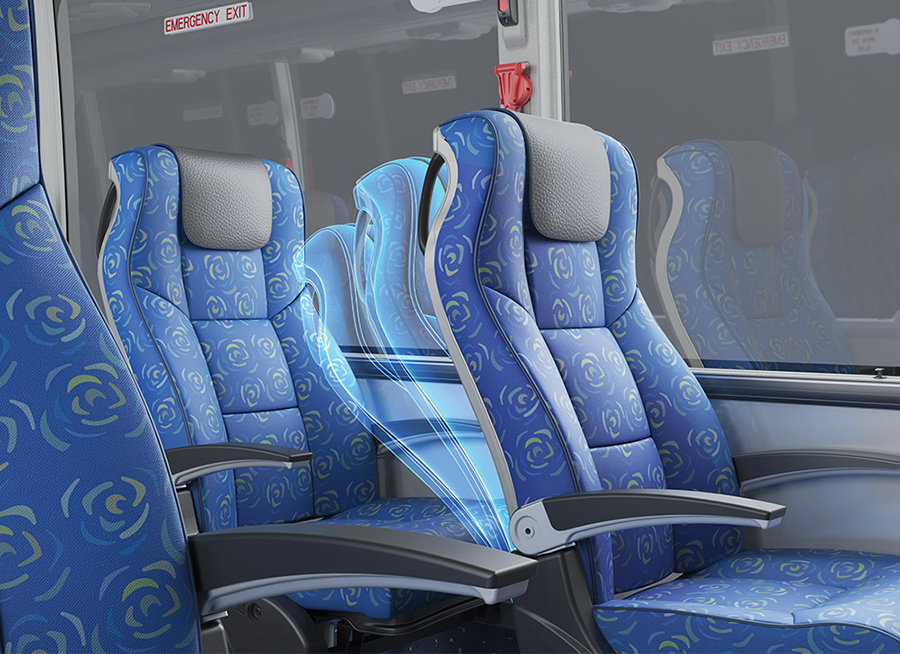

The new Skyline Pro is the premium range of Eicher Staff buses built on the reliable 3000 series platform. Powered by the new E494 engine which delivers 160 hp power with best in class fuel efficiency. Refreshed design, pasted tinted glass windows, LED lit modular hat-rack, plush pushback seats and varied seating configurations give a definite edge to our Pro range of buses.

Specifications Skyline Pro 3009 H
Seating Capacity 36+D HHR 2X2
32+D PB 2X2
Wheelbase (mm) 4320
Overall Length (mm) 8957
Overall Width (mm) 2350
Overall Height (mm) 2993
Overhang (mm) Front : 2045
Rear : 2592
Turning Circle Diameter (m) 15.2
Engine Make E494
Displacement (cc) 3770
Power 160hp (120kW) @ 2600rpm
Torque 500 Nm @ 1200-1800rpm
Clutch (mm) 330
Transmission Make : ET40S6
Type : Synchromesh (6 SPeed + 1 Rev)
GVW (Tonnes) 9.8
Chassis Type Domex 650
Chassis dimension (mm) 210 X 76 X 6
Fuel Tank Capacity (l) 100
Brakes Dual Circuit 'S' Cam Full Air brakes
Tyres 235/75 R17.5-14PR Tubeless
Suspension Front : Parabolic with ARB
Rear : Parabolic
Steering Power steering
Battery 12V 130Ah
Alternator 110 A
Flooring Silicon embedded vinyl

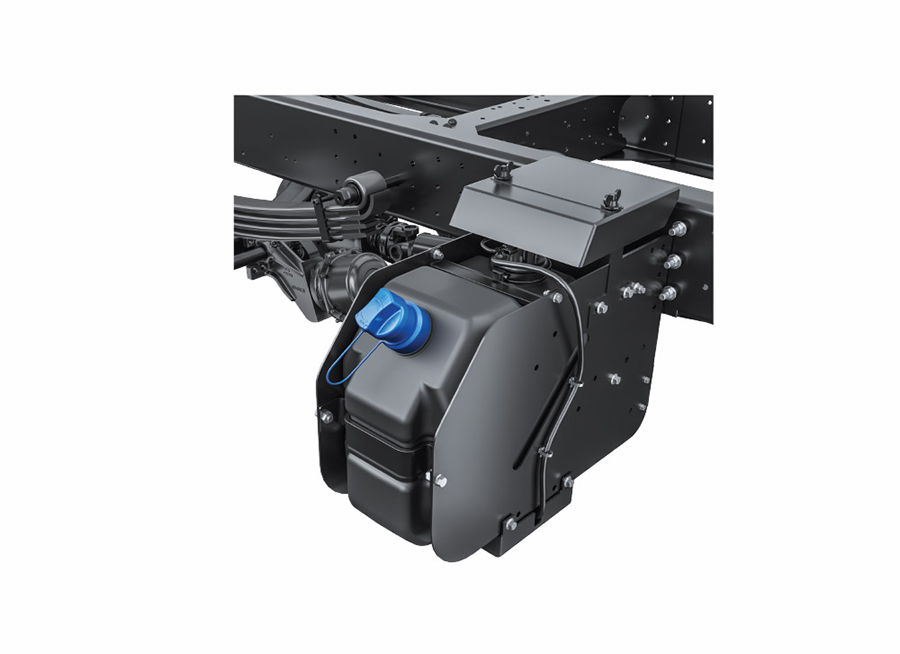

DEF Tank Capacity (l) 27

Dynamic Fuel Coaching

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy

M-Booster+

MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Cruise Control

Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy

Eicher Live

An innovative and intelligent telematics system, Eicher Live facilitates in keeping a track of fuel consumption, maintenance needs, and monitoring the movement of buses.

IDIS

Intelligent Driver Information System keeps you aware of all the runtime information of the bus

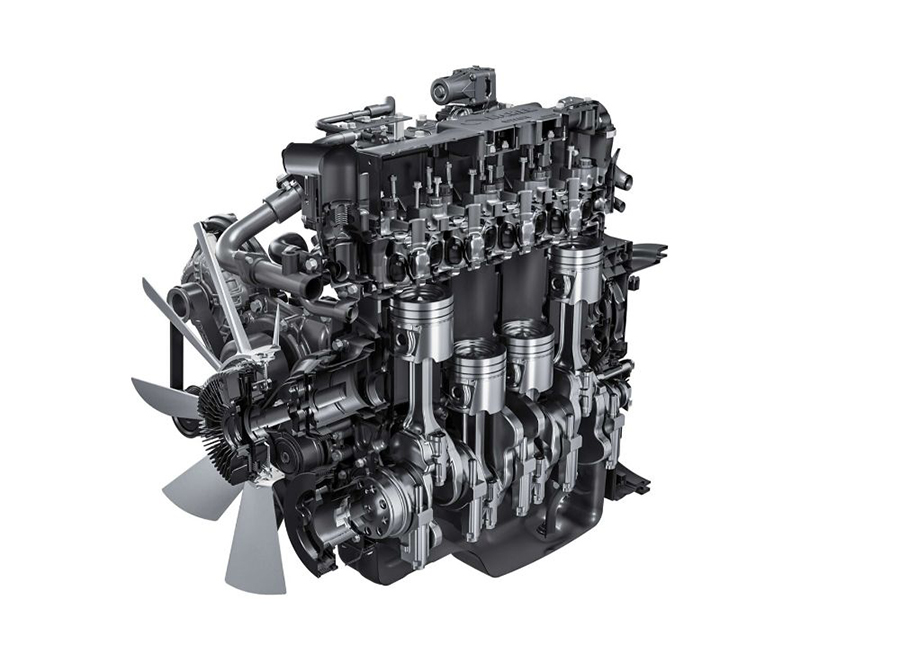

BSVI E494 Engine

This engine offers dual benefits of high power and high fuel efficiency

Lifetime Support Solutions
