EICHER Skyline 2090 L

  • 53

    Seating Capacity

  • E474

    Engine

  • 140 HP

    Power

  • 400 Nm

    Torque

  • Diesel

    Fuel Type

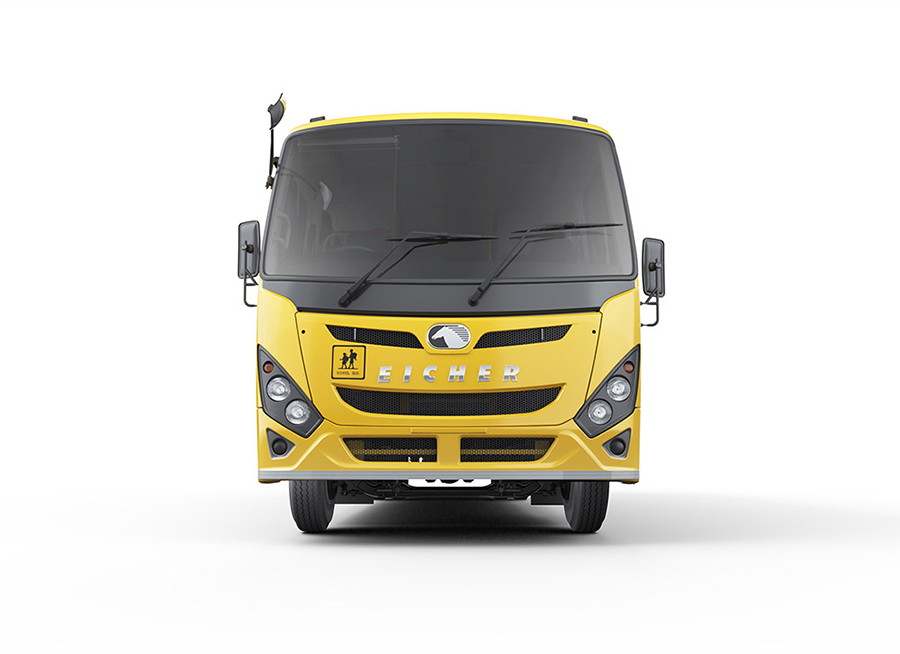

EICHER Skyline 2090 L

The all new Skyline is completely revamped with distinctively premium looks, 2350 mm wide bus body, silent & grease free parabolic suspension and radial tubeless tyres. Skyline school buses offer the right blend of safety, comfort and performance to ensure that every journey of the students is safe and comfortable. BSVI skyline is driven by state-of-the-art E474 engine which provides powerful performance. Its superior fuel efficiency coupled with lower maintenance cost leads to high profitability.

SPECIFICATIONS 2090 L

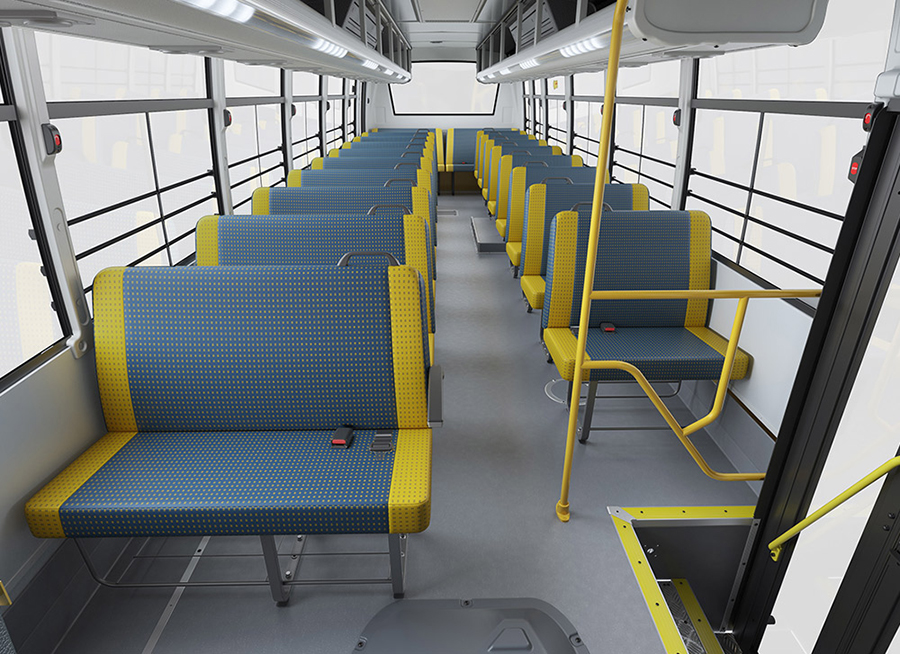

Seating Capacity 51+1+D (3X2)
Wheelbase (mm) 5240
Overall Length (mm) 9584
Overall Width (mm) 2350
Overall Height (mm) 2860
Min Ground Clearance (mm) 187
Front Overhang (mm) 1200
Rear Overhang (mm) 3144
Turning Circle Diameter (m) 19.4
Engine Make E474
Displacement (cc) 2960
Power 140hp (105kW) @ 3200 rpm
Torque 400Nm @ 1200- 2500 rpm
Clutch (mm) 310
Transmission Make ET35S6
Transmission Type synchromesh (6 Speed,1 Rev)
GVW (Tonnes) 9.9
Chassis Type Domex 650
Chassis C frame dimensions (mm) 200x65x5
Fuel Tank Capacity (l) 160
Brakes Dual Circuit 'S' Cam Full Air brakes
Tyres 235/75 R17.5- 14PR (Radial Tubeless )

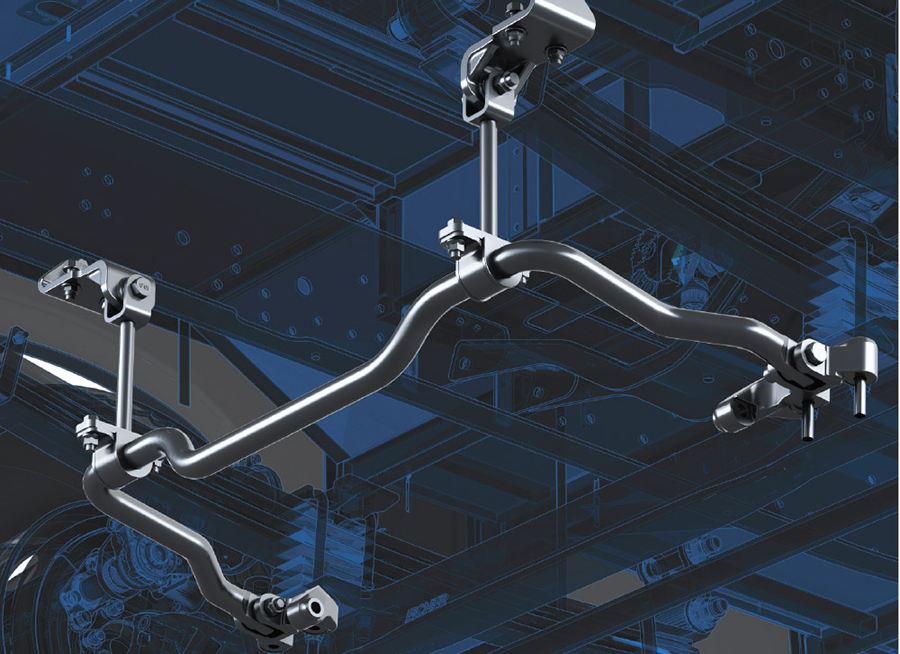

Suspension Front Parabolic with Anti-Roll Bar
Suspension Rear Parabolic
Steering Power Steering
Battery 12V 130Ah
Alternator 110A

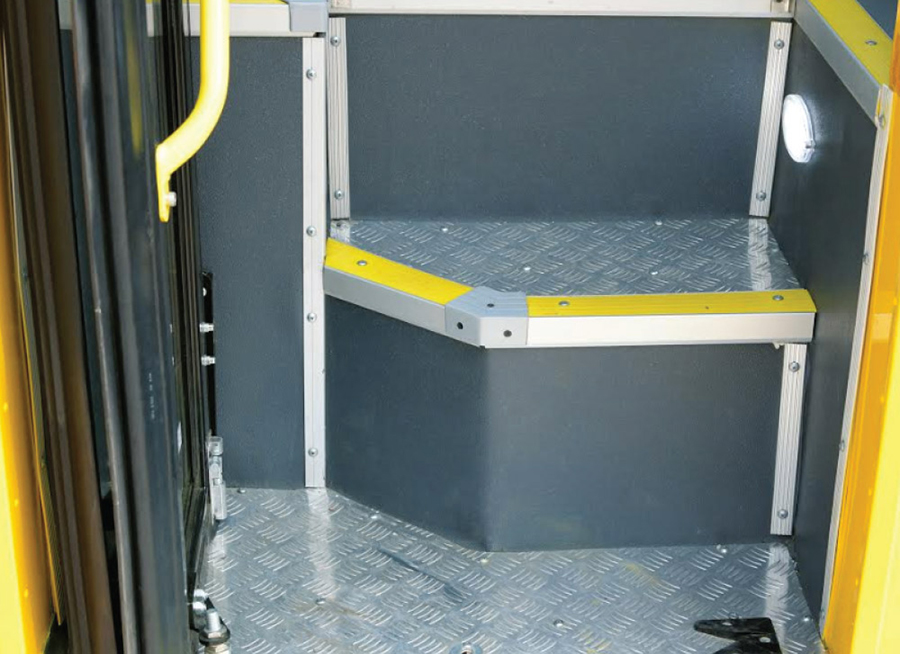

Flooring Vinyl

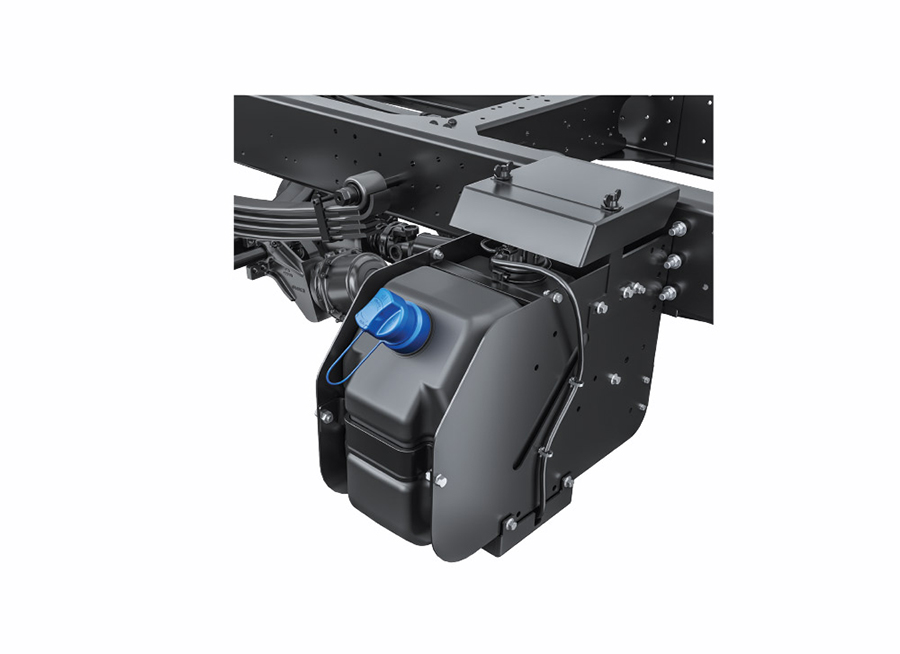

DEF Tank Capacity (l) 19

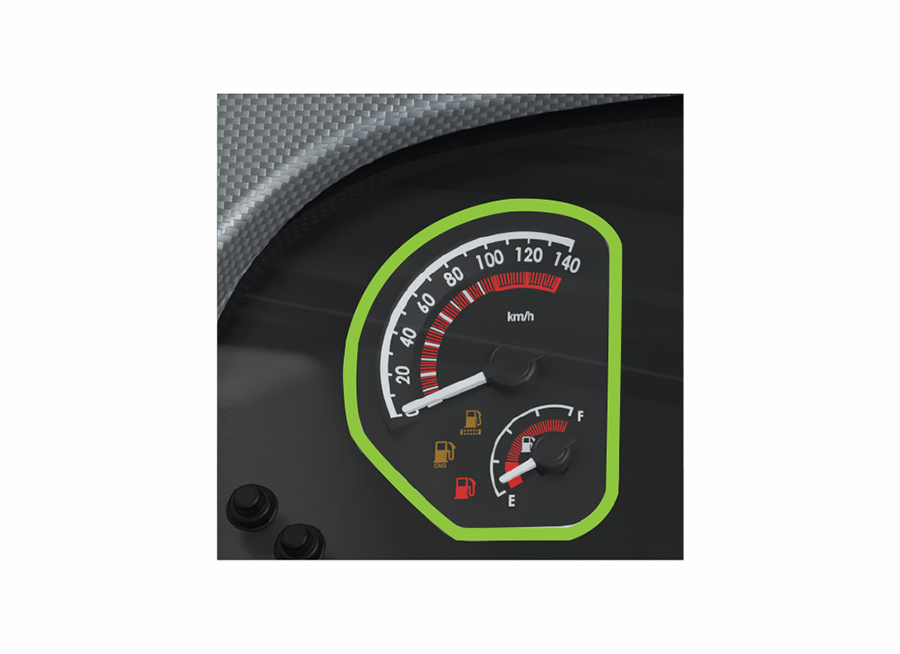

Dynamic Fuel Coaching

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy

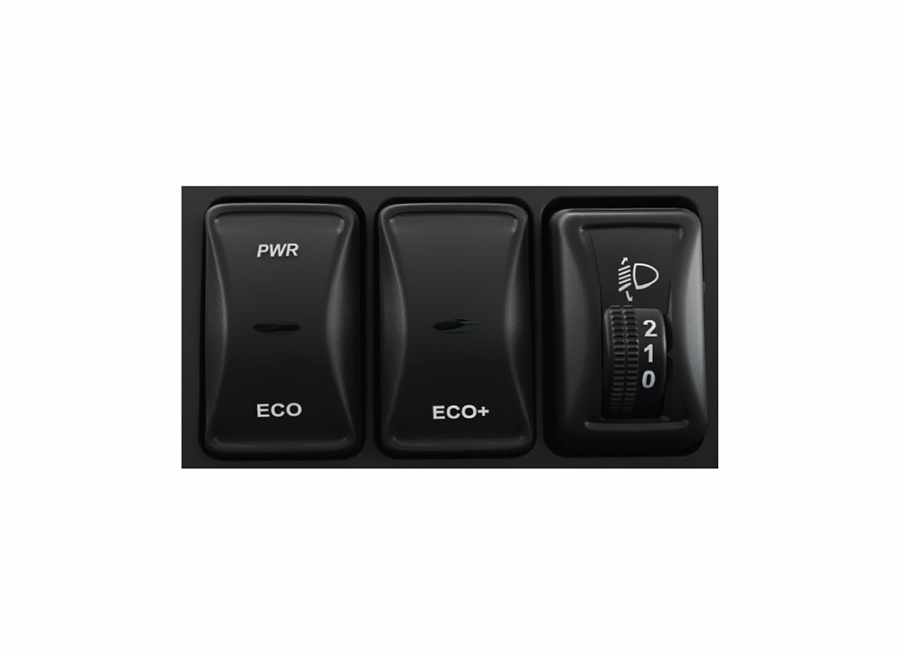

M-Booster+

MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Cruise Control

Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy

Eicher Live

An innovative and intelligent telematics system, Eicher Live facilitates in keeping a track of fuel consumption, maintenance needs, and monitoring the movement of buses.

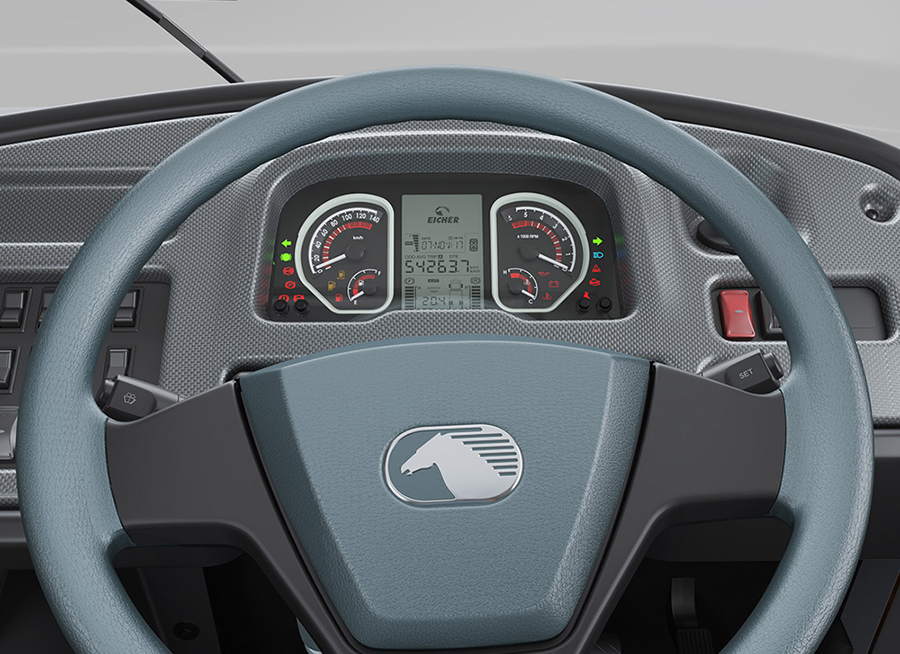

IDIS

Intelligent Driver Information System keeps you aware of all the runtime information of the bus

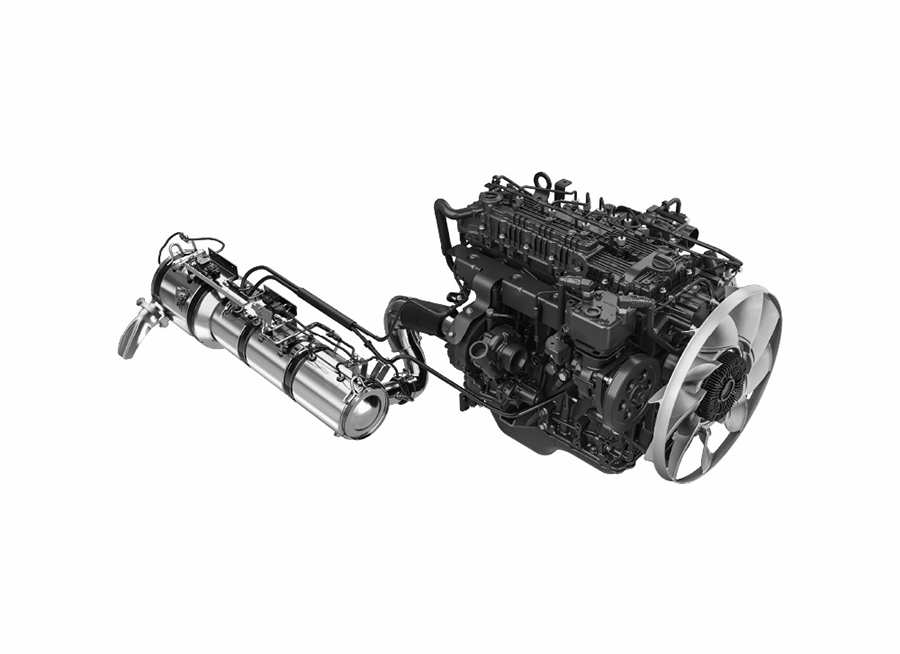

BSVI E474 Engine

This engine offers dual benefits of high power and high fuel efficiency

Lifetime Support Solutions
